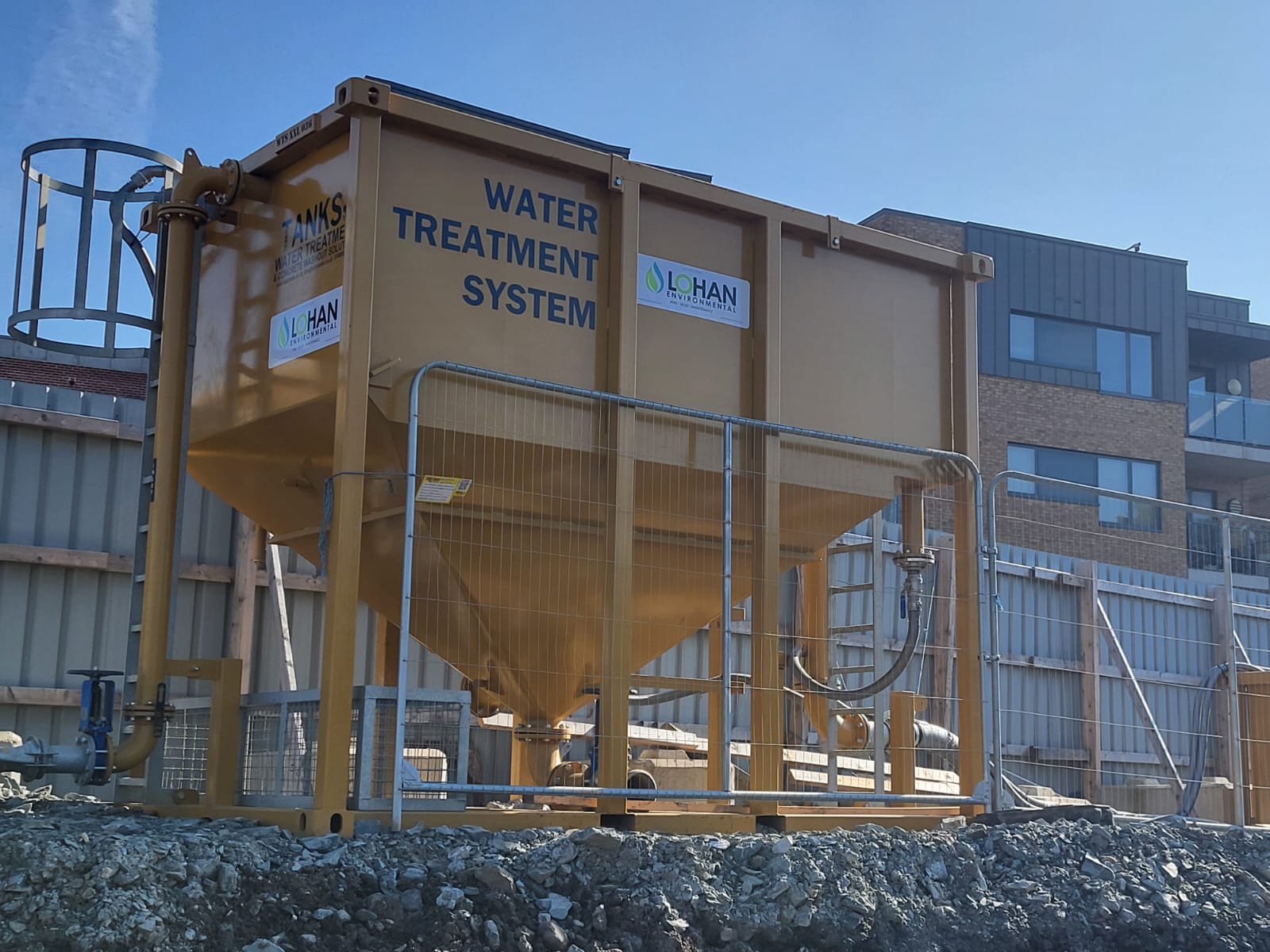

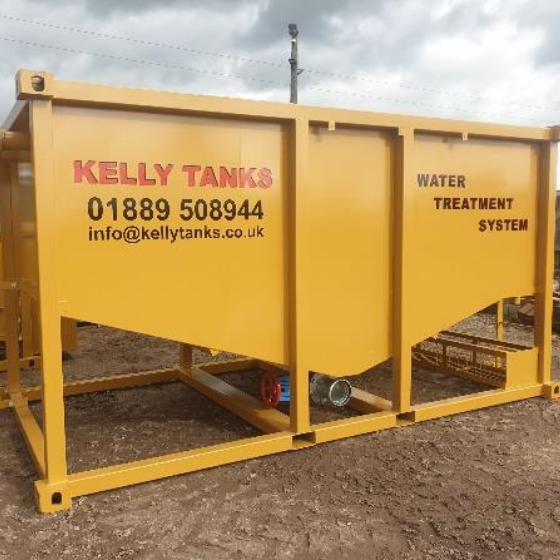

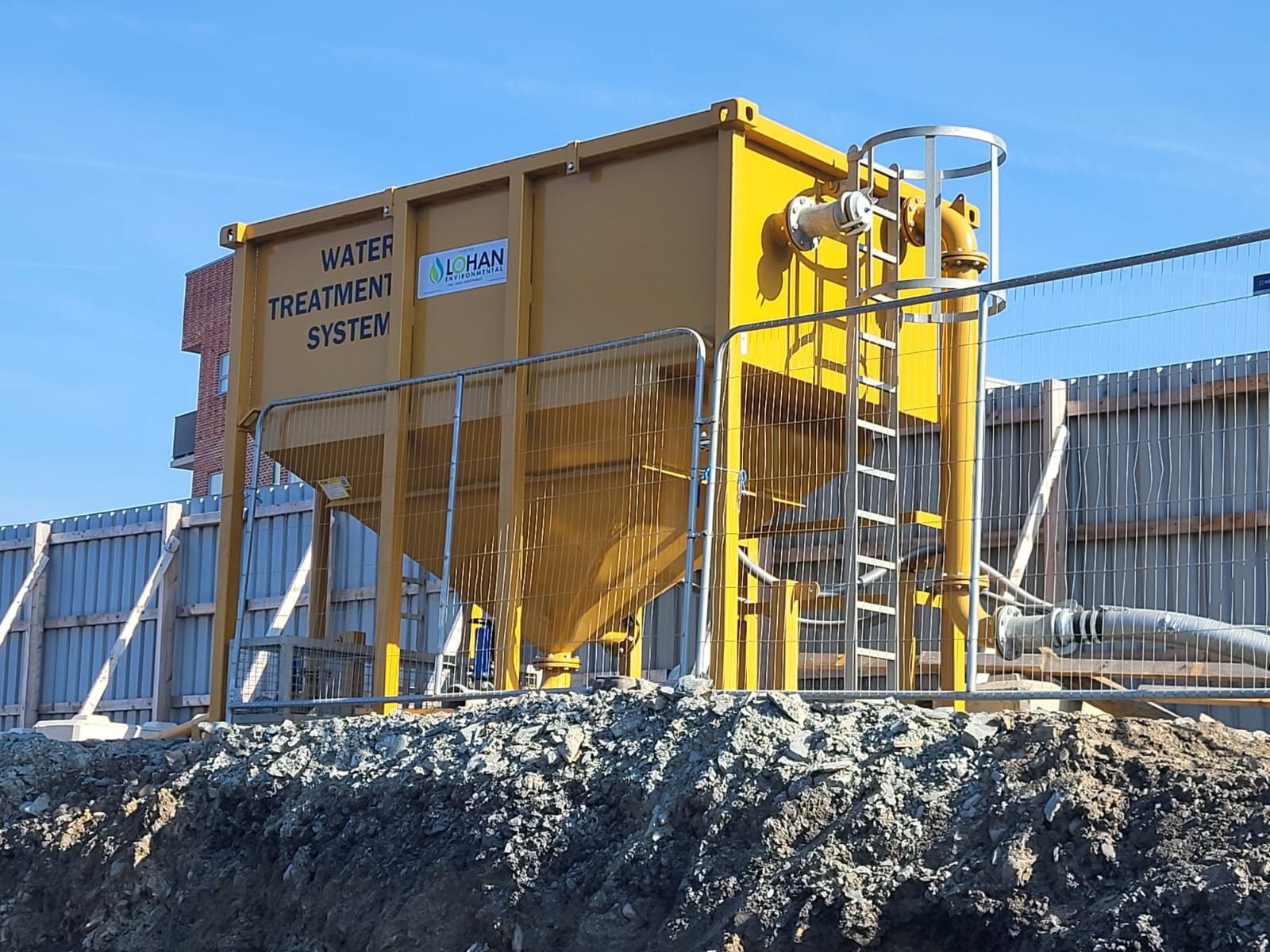

Ideal solution when dewatering and dealing with stubborn suspended solids. The coalescing/lamella media provides a huge settling area and encourages settlement of all types of silt. Silt and Sludge is collected in the hopper and can be easily removed via the dump valve. Systems can be used with or without Flocculant. Media can be provided with varying diameter openings making the WTS the perfect system for any application. System can also be fitted with remote water quality monitoring systems and/or auto desludging pumps.







| Dims (mm)/ Weight approx. | WTS 2880 (L) 1560 (W) 1510 (H) / 820kg WTS XL 4020 (L) 1830 (W) 2140 (H) / 1320kg WTS XXL 4940 (L) 2370 (W) 2260 (H) / 2200kg WTS XXL LH 4210 (L) 2210 (W) 3250 (H) / 3200kg |
| Optimum Max Flowrate | WTS 15m3/hr WTS XL 25m3/hr WTS XXL 30-40m3/hr WTS XXL LH 50-60m3/hr |
| Power Required | NOT REQUIRED* *110V required if dosing or remote monitoring |
| Consumables | Flocculant Block (optional) Hydrocarbon Filter Pads (optional) |
