Concrete Skip Washout Frame

Concrete Column Skips available for hire or purchase & the ideal solution for washing them out onsite

Designed with a unique mechanism to allow different size skips to slot into position without manual adjustments and a spring action loaded bar that adjusts automatically to accommodate different size skips. Concrete Skip Washout Frame compatible with Kelly Tanks Concrete Washout System & various size Concrete Skips to create environmentally safe, easy to use, washout recycling system.

  • Safe, secure storage and washing out of Concrete Skips
  • No manual adjustments required
  • Simple to set up, simple to empty, simple to operate
  • Robust compact system with small footprint – 2 parts for transport
Download Spec
Enquire Now

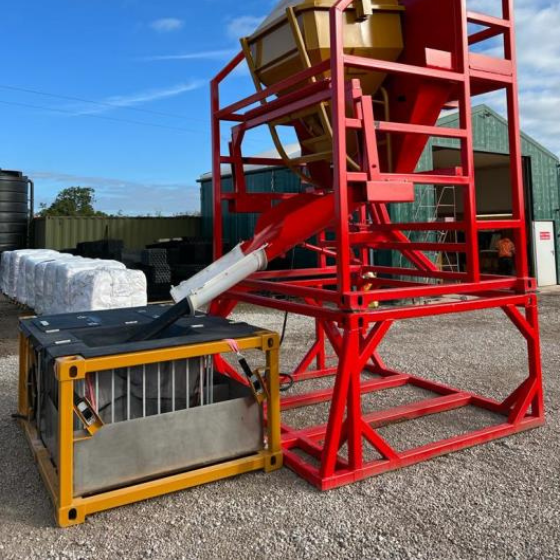

CONCRETE SKIPS & WASHOUT FRAME

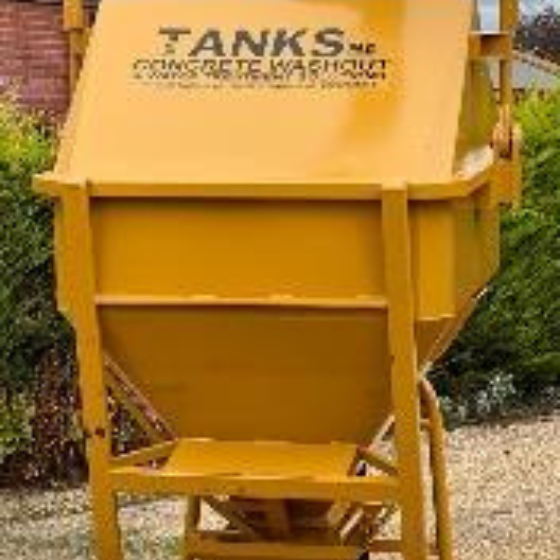

CONCRETE SKIPS & WASHOUT FRAME (2)

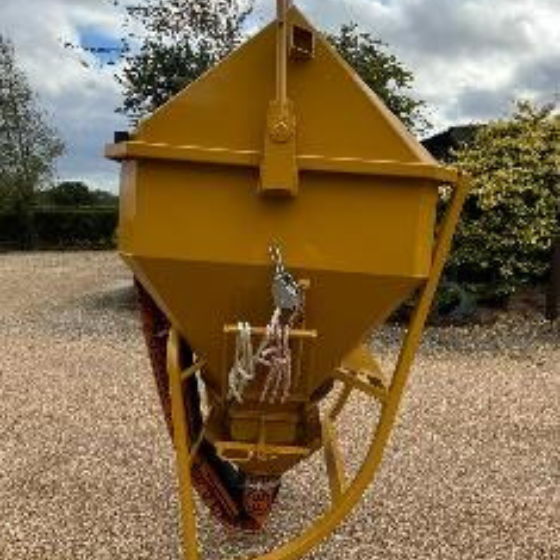

CONCRETE SKIPS & WASHOUT FRAME (3)

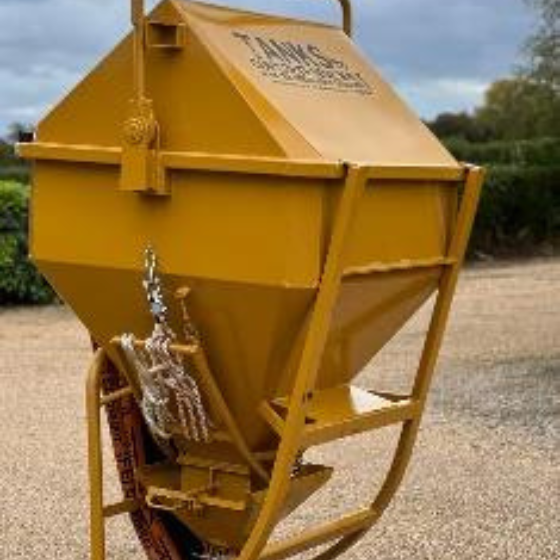

CONCRETE SKIPS & WASHOUT FRAME (4)

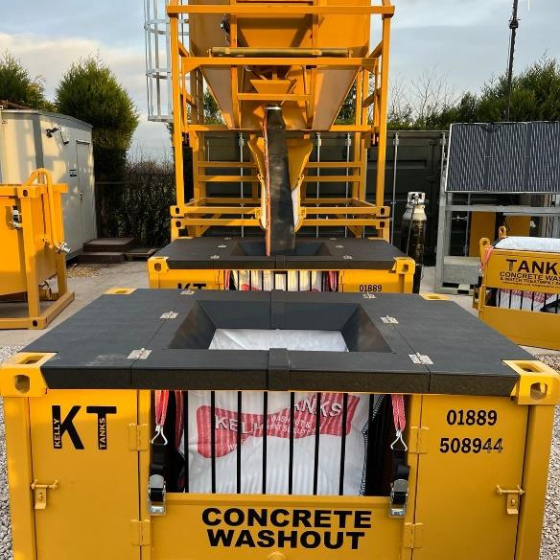

CONCRETE SKIPS & WASHOUT FRAME (5)

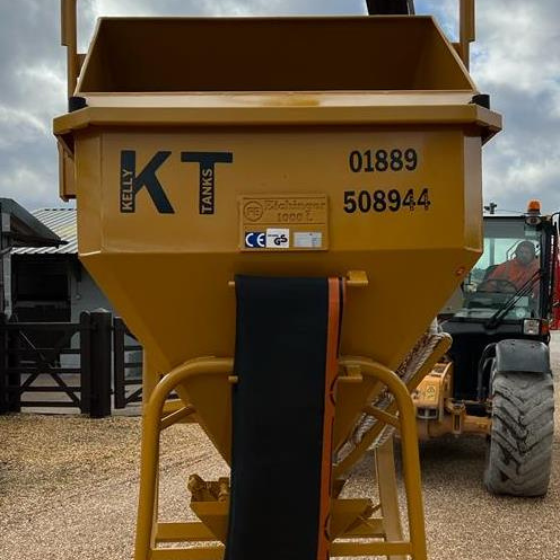

CONCRETE SKIPS & WASHOUT FRAME (1)

Dimensions & Weights

Skip Frame Spec
 Standard: for use with 500–2000ltr SkipsXL: for use with 2000–3000ltr skips
Dims (mm) approx.2480 (L) 2200 (W) 4255 (H)3300 (L) 2650 (W) 5150 (H)
Weight approx.Unladen: 1300kgUnladen: 2100kg
Power RequiredNONE unless used with CWS
ConsumablesNONE unless used with CWS
Column Skip Dims
Capacity (ltrs) Height (mm) HANGING Width (mm)
500 2200 1050
1000 2750 1200
1500 2980 1500
2000 3280 1500
3000 3150 1800
